PROLINE INDUSTRIAL VALVES
Manufacturer of Wide Ranges of All Types of Butterfly Valves as per Application to Application Design of Flow Control Industry needs. We have huge set up for Butterfly Valve and Has In House facilities like Foundry Inward Raw Material Inspection, Testing, Machining, Assembling, Final Inspection, painting & generally ready Stock of Butterfly Valves.
We have Wide Selling Network in India’s Major Cities for All Types of Butterfly Valves in Delhi, Mumbai, Kolkata, Punjab, Chennai, Bangalore, Pune and Hyderabad. Our Products are made As per International Standards, High Export Quality, and Quick delivery and full fill the needs of all Types of Industries.
We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

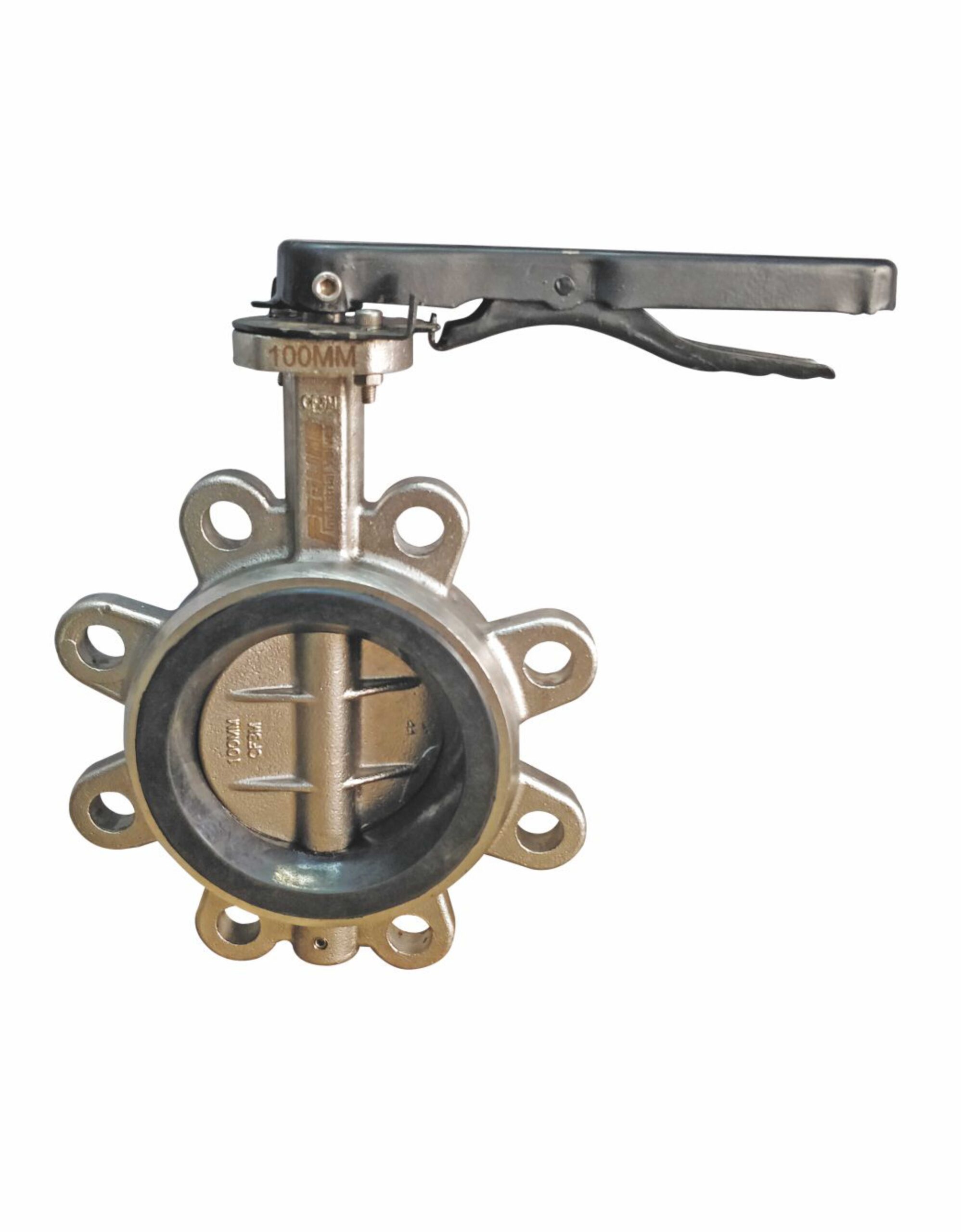

Features Of Our Butterfly Valve
- Body Casting of Superior grade, additional Strength, maximum Flow Capacity with Lowest Pressure Drop, High Pressure Rating , Extended neck Design are Provided
- Thru-stem design with high strength and Unique Stem retention system to provide blow-out proof stem, One piece stem with close tolerances double D drive Design In Handle eliminates the need for disc screws or taper pins, self-adjusting stem seal, suitable for vacuum And Square Made as per direct mounting of all kind of actuators
- Nylon coated high strength disc with Round, polished disc edge and hubs ensures excellent corrosion resistance, Low Torque and Bi-directional flow Type Centric Disc Design
- Molded-in resilient seat provides 100% bubble-tight shutoff, zero leakages, concentric seating, lower torques and longer seat life. integral Molded Seat with body
Material Option Of Our Butterfly Valve
- Size: 50 Mm To 900 Mm – 2″-36”
- Body Material: Cast Iron, Ductile Iron, Ic-Wcb,Ss304,Ss316,Ss316L
- Gate Material: M.S,Ss 304,Ss316,Ss316L,Nitriding,Stelliting
- Seat Material: Ptfe Teflon, Epdm,Viton, Silicone, Metal To Metal, Soft Seating
- End Connection: Full Lugs, Wafer Type, Flangeless, Double Flanged Type
- Drilling: As Per Ansi B 16.5 / Bs / Din / Jis / Is Standard, Rest On Request
- Design & Insp: Ms Sp 81 Design Standard And Api 598
- Operation Type: Hand Wheel Type, Gear Operated, Pneumatic Cylinder, Electrical Actuator
