Pneumatic Cylinder

PROLINE INDUSTRIAL VALVES

Manufacturer & Exporter of Round Body, Square Body, Compact type P, Pencil type Pneumatic Cylinder.
Our Pneumatic Cylinder are Manufactured As per Various Standard and Customized Requirement Include DIN ISO 6432, ISO 15552 & VDMA 24562 Various Option Includes Magnetic and Non Magnetic Cylinder, Mounting Adjustable Cushions and Permanent Magnet for Proximity Sensors, Reed Switches, Double End Cylinder, Standard Cylinder, Pencil Cylinder Various Mounting Like Rod eye Adapter, Fish Eye Adapter, Axes Adapter, I-Pin Adapter, Twin Rod Cylinder, TC Center Trunnion Mounting, Leg Bracket Mounting, Male Clave Mounting, Female Clave Mounting, Twin Rod Cylinder, Rod Eye Mounting, Fork Mounting and Pivot Mounting Cylinder.

Features Of Our Pneumatic Cylinder Valves

• Cylinder Barrels are High-Strength Aluminum Alloy
• Piston Rod Hard Chrome Plated
• Long Seal and Bearing Life.
• Lower Maintenance Costs & Smooth Operation
• Trouble-Free Installation and Extended Service Life
• Multiple Mounting Configurations Are Possible
• Special Mountings for Pneumatic Cylinders are available on Request

Material Option Of Our Pneumatic Cylinder Valves

• Type: Square Body, Round Body, Compact Pencil Type
• Operation: Doble Acting Type And Single Acting Type
• Bore Size: 32 Mm To 100 Mm – 1.1/4 “- 4”
• Stroke Size: Up To 1000 Mm
• Barrel: Aluminum/ M.S. Stainless Steel
• End Cover: Aluminium, Cast Iron, S.S.
• Seals: Buna-N / Viton
• Temperature: Up To 85°C (High Temperature On Request)
• Working Pressure: 0 To 10 Bar
• Various Mounting: Available On Request

PROLINE INDUSTRIAL VALVES

Manufacturer & Exporter of 2/2 and 3/2 way Direct Acting Types Solenoid Valves. In the De-Energized Condition, the Core Spring Holds the Seat & Seal to the Solenoid Core, by Assisted Pressure of the Fluid. Due to which the Flow is Shutting to be off.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Direct Acting Solenoid Valve

• IP 65, IP 67, IP 68 Protection Class, Dust Proof, Flame Proof, Water Tight Enclosure
• Local position Indicator, Adjustable mechanical stoppers, Space Heater, Dry Potential Free Contact Output for Remote Place Feedback Indication Option.
• Limit Switches (1 NO+1 NC)- 2 Nos. (Rating 10A – 250 VAC)
  Auxiliary limit switches – (1 NO + 1NC) – 4NOs & Torque limit switches (1NO + 1NC) – 2NOs. (for Higher Models)
• Positioner is available in field/panel mounted to accept 4-20mA/D-10 V DC control signal & Rx Output with Servo Controller
• Local control station Integral Starter Optional On Request with Additional Access

Material Option Of Our Direct Acting Solenoid Valve

• Type: Normally Close/Open
• Size: 8 Mm To 15 Mm – 1/4 “- 1/2”
• Body: Brass, Astm 351 Cf8 / Cf8M
• Seat & Seals: Nbr,Viton,Epdm,Ptfe
• Plunger: Stainless Steel
• Temperature: Up To 85°C (High Temperature On Request)
• Working Pressure: Upto 70 Bar
• Coil Voltage: All Standard Voltage Are Avaliable
• Coil Rated: Continuous Rated With Class (F)-(H) Insulation
• Ends: Screwed End
• Media: Vaccum, Air, Water, Oil, Gas & Chemical

Low Pressure Solenoid Valve | Suppliers & Manufacturers India

PROLINE INDUSTRIAL VALVES

Manufacturer & Exporter of 2 Way Low Pressure Solenoid Valve. These Low Pressure Solenoid Valves they are Piston Operated Design Type and Pilot Operated Design Type. These are Normally Closed Type Solenoid Valves. Open when, Coil is energized. Superior grade raw are used in Low Pressure Solenoid Valves.

Proline Valves Make 2 ways Low Pressure Solenoid Valves Have Lower Operating Voltage.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Low Pressure Solenoid Valve

• Low Pressure Solenoid is Compact Design & Simple Commissioning.
• Low Pressure Solenoid Valve Design For pressure 0-1000 mm WC
• 2/2 Way Semi Lift Diaphragm Low Pressure Solenoid Valve are Normally Closed Type
• Excellent performance and Reliable operations
• Low Pressure Solenoid Valves has Less Power Consumption.

Material Option Of Our Low Pressure Solenoid Valve

• Size: 15 Mm To 50 Mm – 1/2 “- 2”
• Body: Brass,Cf8, Cf8M
• Diaphragm: Nitrile/Neoprene/Teflon,Silicon
• Temperature: Up To 85°C (High Temperature On Request)
• Working Pressure: 0 To 6 Bar
• Coil Voltage: All Standard Voltage Are Avaliable
• Coil Rated: Continuous Rated With Class F Insulation
• Ends: Screwed End, Flange Ends, Tri Clover Ends,
• Media: Air,Hot Water,Oil,Gas & Vaccum

Pneumatic Diaphragm Operated Solenoid Valve | Suppliers & Manufacturers India

PROLINE INDUSTRIAL VALVES

We offers a wide range of 2 Port Solenoid Valves to suit variety of applications. These valves can be basically classified as Normally Closed or Normally Open based on the valve condition when the solenoid is energized. Further they can be classified as Direct Acting, Diaphragm Operated, Internal / External Pilot Operated.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Pneumatic Diaphragm Operated Solenoid Valve

• 2/2 Ways Diaphragm Solenoid Valves has High flow capacity.
• Diaphragm Solenoid Valve is Compact in Design & Light in Weight.
• Diaphragm Solenoid Valves Need Full Power at All Times to Open and Stay Open
• Pilot Operated Diaphragm Solenoid Valves are Tight Shut Off
• Diaphragm Solenoid Valves are Widely used for High Speed Cycling

Material Option Of Our Pneumatic Diaphragm Operated Solenoid Valve

• Actuator Type: Diaphragm Type Normally Close / Normally Open
• Size: 15 Mm To 100 Mm – 1/2 “- 4”
• Body: Cf8, Cf8M
• Diaphragm: Diaphragm (Nitrile/Neoprene/Epdm/Viton)
• Temperature: -5°C To 85°C Above On Request
• Working Pressure: 0.5 To 10 Bar
• Coil Voltage: All Standard Voltage Are Avaliable
• Coil Insulation: Class “F” & Class “H”
• Coil Enclosure: Wheather Proof Ip 67, Flame Proof Ex Ii B Iic.
• Ends: Screwed End, Flange Ends, Tri Clover Ends
• Media: Air,Water,Gas & Free Flowing Chemicals

PROLINE INDUSTRIAL VALVES

Manufacturer & Exporter of 2 Way Dust Collector Pulse Jet Solenoid Valve. Proline makes 2/2 Way Angle Type Dust Collector Pulse Valves are designed for Quick Open and Close, Which Results in Effective Cleaning & Air Consumption.

This Main Pulse Valves have just one Moving Part, the high quality Diaphragm. Our Pulse Valves has High Flow Rates with Long Operational Life. Our Pulse Valves Has High Speed in Operation, Due to this Dust from Filter Bags is Free while Operation Time.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Dust Collector

• Pulse Jet Solenoid Valves has High Flow Rate.
• Pulse Solenoid Valve has Spring Less Compact Design & Simple Commissioning.
• Dust Collector Can Be Mountable In Any Position.
• Pulse Jet Bag Filters Solenoid Valve Has Long Working Life.
• Pulse Valves has Less Power Consumption and Lower Air Consumption

Material Option Of Our Dust Collector

• Size: 15 Mm To 50 Mm – 1/2 “- 2”
• Body: Aluminum Die Cast, Cf8, Cf8M
• Diaphragm: Diaphragm (Nitrile/Neoprene/Pu)
• Temperature: -5°C To 80°C (125 °C Above On Request)
• Working Pressure: 0.6 To 8 Bar
• Coil Voltage: All Standard Voltage Are Avaliable
• Coil Rated: Continuous Rated With Class F Insulation
• Ends: Screwed End, Flange Ends, Tri Clover Ends, Union Ends
• Media: Free Flowing Air

PROLINE INDUSTRIAL VALVES

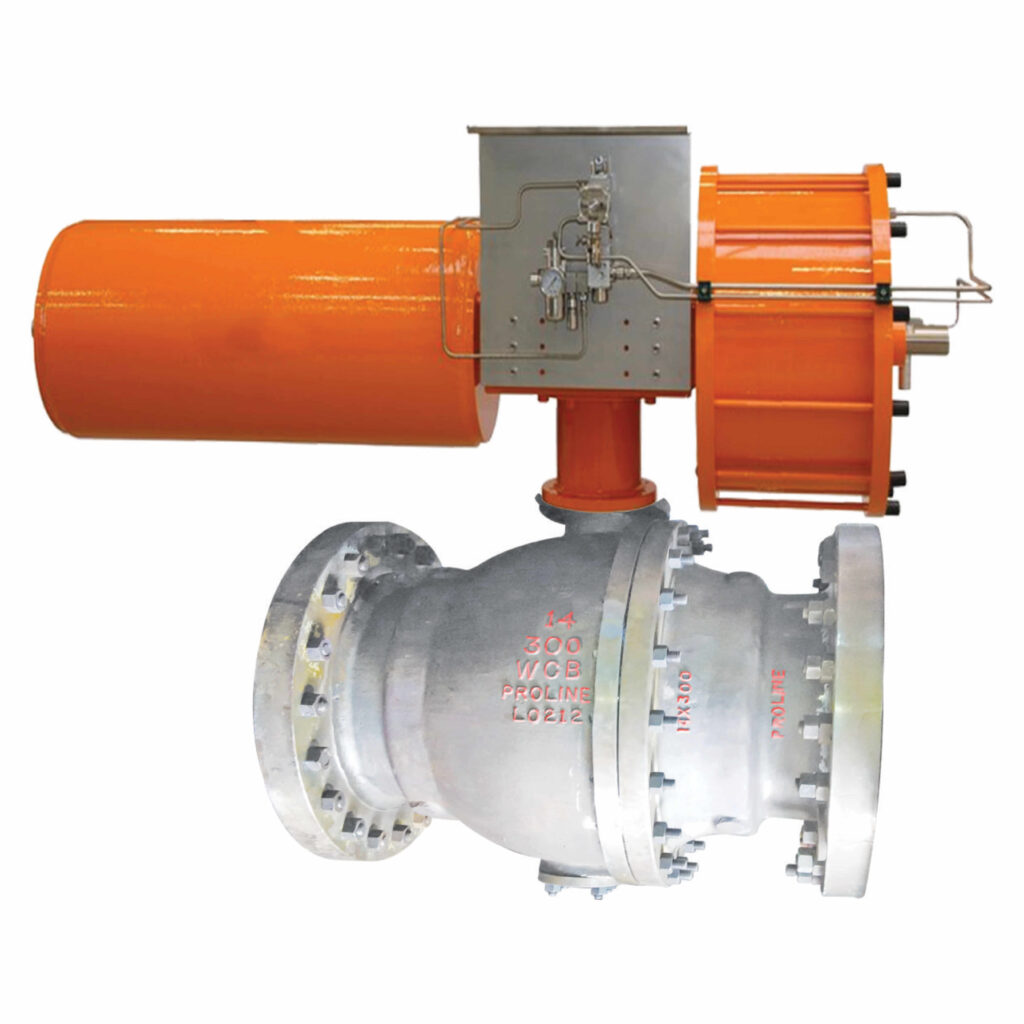

Manufacturer & Suppliers Pneumatic Rotary Air Actuators Operated Ball Valves. Pneumatic Actuators are widely used among Actuators. As These Are Simple in Construction, Have Less Maintenance and Low-Cost Effective in Valves Automation Industries.

Proline Industrial Valve Pneumatic Actuator is available in Double Acting Type or Single Acting Type. Double Acting Pneumatic Actuator Ball Valve Uses Air to Open and Air to Close. Where Single Acting Air Actuator Ball Valves use Air Pressure to open and Springs to close the valve. (Failsafe) Closed Condition.

We manufacture, supply, and export in anywhere India & UAE with the fastest delivery option.

Features Of Our Pneumatic Ball Valve

• Pneumatic Actuator Ball Valves Give Greater Flows, Wider Media Compatibility.
• Ball Valves Has Both Side Seals Covered of Internal Ball, And Can Give Tight Shut Off After Years of Cycle Operation.
• Body Extruded Aluminium Hard Anodized for Corrosion Protection & Wear Resistance.
• Actuator Compact Modular Design Provides Direct Mounting on Ball Valves.
• Quick opening & closing, Long Life in Working Cycle
• Actuators Have High Bore Finished and are Factory Lubricated for Good Life Cycle in Normal Conditions.

Material Option Of Our Pneumatic Ball Valve

• Flow Pattern: 2 Way, 3 Way, 4 Way & 5 Way
• Size: 15 Mm To 400 Mm – ½ “- 16”
• Body: C.I,Wcb, Cf8, Cf8M, P.P, Upvc, Lined, Forged
• Ball: Cf8, Cf8M, P.P, Upvc, Lined
• Shaft: Aisi 304, 316, Monel
• Seat: Rptfe, Teflon, Peek,Gft, Metal To Metal
• Pressure Rating: ANSI 125 #, 150 #, 300 #, 800#
• Ends: Screwed Type, Socket Weld Type, Flanged Type, Tc End
• Leakage: Tight Shut-Off To Class Vi
• Manual Operation: Can Be Provided As An Additional Feature
• Accessories: Air Lock Relay, Pneumatic To Pneumatic Valve Positioner, Electro-Pneumatic Valve Positioner With In Build Position Indicator, Rotary Limit Switches, Proximity Switches Solenoid Valves

PROLINE INDUSTRIAL VALVES

Manufacturer & Suppliers Pneumatic Rotary Air Actuators Operated Butterfly Valves. Pneumatic Actuators are widely used among Actuators. As These Are Simple in Construction, Have Less Maintenance and Low Cost Effective in Valves Automation Industries.

Proline Industrial Valve Pneumatic Actuator is available in Double Acting Type or Single Acting Type. Double Acting Pneumatic Actuator Butterfly Valve Uses Air to Open and Air to Close. Where Single Acting Air Actuator Butterfly Valves uses Air Pressure to open and Springs to close the valve (failsafe) Closed

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Pneumatic Butterfly Valve

• Body Extruded Aluminium Hard Anodized for Corrosion Protection & Wear Resistance.
• Actuator Compact Modular Design Provides Direct Mounting on Butterfly Valves.
• Lightweight due to their Compact Rack And Pinion Construction, Low Friction Piston and Rings Provide Maximum Efficiency and Long Life in Working Cycle
• Quick opening & closing
• Actuators Have High Bore Finished and are Factory Lubricated for Good Life Cycle in Normal Conditions.

Material Option Of Our Pneumatic Butterfly Valve

• Size: 40 Mm To 500 Mm – 2 “- 20”
• Body: C.I, D.I, Wcb, Cf8, Cf8M, Gm, Is 2062 Gr. M.S.- Fabricated
• Disc: Sgi, Di, S.S.410, Wcb,Cf8, Cf8M, Aluminium Bronze, Nylon Coated
• Shaft: S.S. Aisi 410, Ss304,Ss316,Monel
• Seat: Nitrile,Epdm,Ptfe, Hyplon, Silicon, Viton, Metal To Metal
• Pressure Rating: Ansi 125 #, 150 #, 300 #,
• Ends: Wafer Type, Double Flange, Lugged Type
• Leakage: Tight Shut-Off To Class Vi
• Manual Operation: Can Be Provided As An Additional Feature
• Accessories: Air Lock Relay, Pneumatic To Pneumatic Valve Positioner, Electro Pneumatic Valve Positioner With In Build Position Indicator, Rotary Limit Switches, Proximity Switches Solenoid Valves

PROLINE INDUSTRIAL VALVES

Manufacturer & Suppliers of High Quality of Pneumatic Diaphragms Control Valves with Electro Pneumatic Positioner.

Our pneumatic Control Valves Flow Pattern are 2 Way / 3 Way Type. Flow Control Valves 2 Way are Design for On Off Type Control & 2 Way Modulating Type Control Valves. 3-ways as Mixing & Diverting Type of Media Passing from Line.

This High Performance Pneumatic Control Valves Are Design As Per Application to Application and can be machined as Per Required CV Values, Flow Rate and Pressure Drop For Pressure Controlling In Line and has Cage Balanced Guide Type Designed.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Pneumatic Control Valve

• Proline Make Pneumatic Control Valves has High Precise Accuracy in Regulating, Powerful thrust at high response speed.
• Suitable For High and Low pressure and Temperature Lines with Low Noise Level
• It has High Flow Capacity, Wide Range Ability, Low friction in performance / Low overall height and High reliability due to few moving parts in an assembly
• Large Variety of Trims Design and Wide Selection of Actuator to meet Application flow Requirement of System.

Material Option Of Our Pneumatic Control Valve

• Type: 2 Way And 3 Way
• Size: 15 Mm To 450 Mm – ½ “-18”
• Pressure Rating: Ansi – 150 To 2500 Class Equivalent To Bs/ Din, Etc
• Body Material: Cast Steel Ic-Wcb,Ss304, Ss16, Ss16L, Monel, Alloy 20,Hastelloy B/C, Duplex , Bronze Ect
• Actuator Type: Diaphragm, Piston And Electric
• Spring Range: 3-15 Psig (0.2 – 1.0 Kg/Cm²), 6-30 Psig (1.4 – 2.5 Kg/Cm²)
• End Connection: Flanged / Swe / Bwe / Screwed (Bsp/Npt)
• Diaphragm: Nitrile, Neoprene
• Accessories: Valve Positioner-Pneumatic, Electro Pneumatic, Smart Positioner

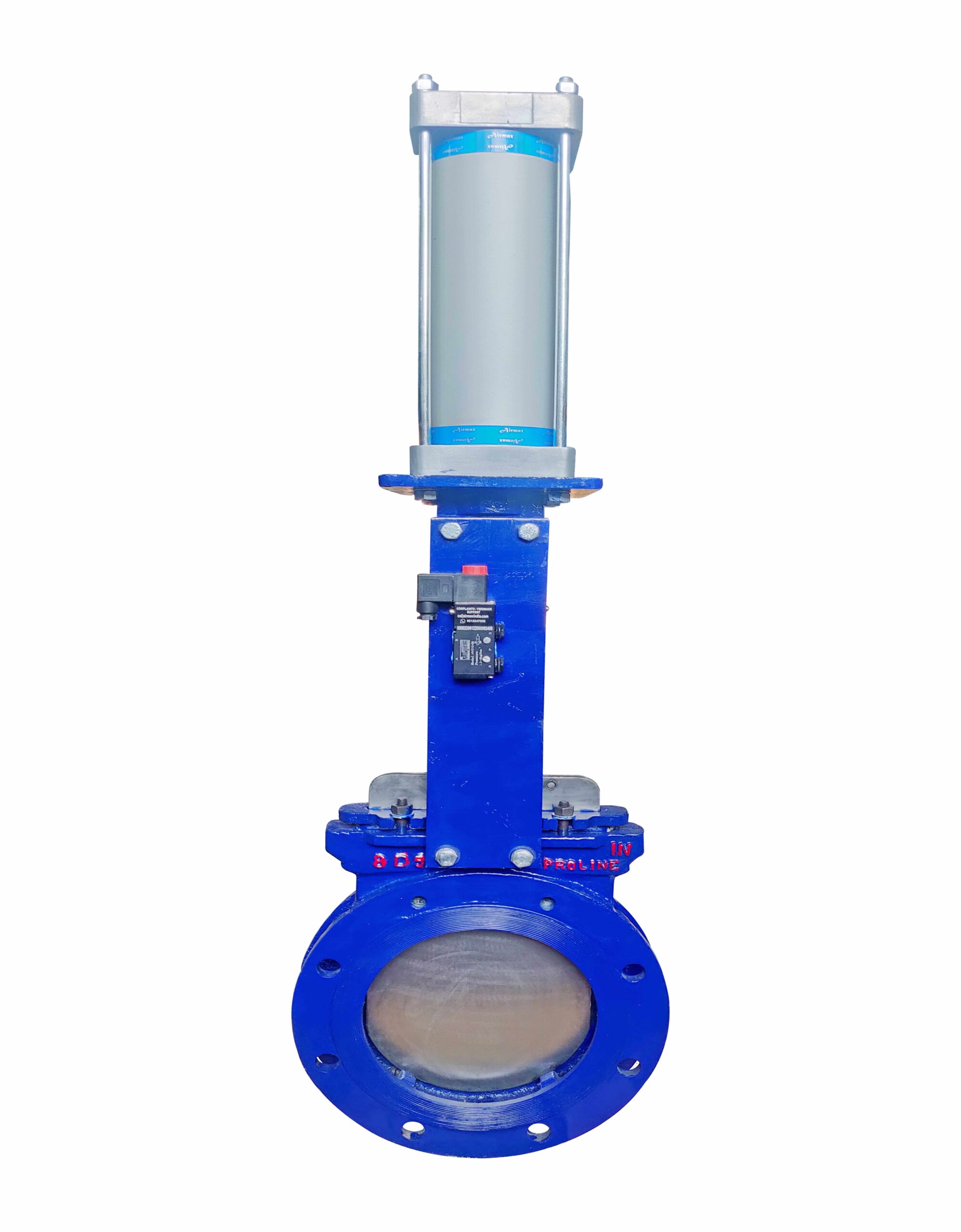

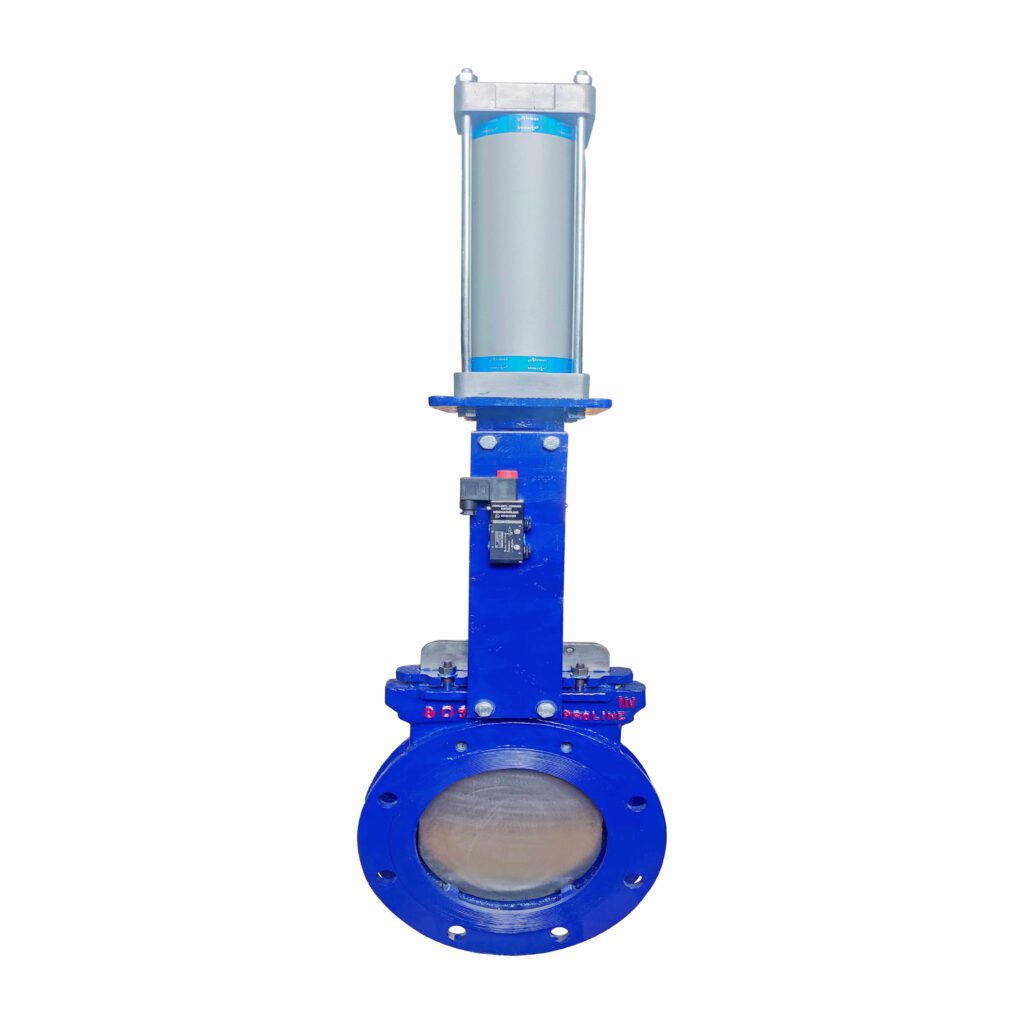

Cylinder Operated Knife Edge Gate Valve | Suppliers & Manufacturers India

PROLINE INDUSTRIAL VALVES

Manufacturer & Suppliers of High Quality of Pneumatic Cylinder Operated Knife edge Valves. This Cylinder Operated Automated Knife Edge Gate Valve is been Used for Various Automation field Industries For Quick Opening and Closing applications Such requiring, high working cycle, high Temperature Line, corrosion/erosion resistance Lines.

Proline make Pneumatic Cylinder Operated Knife Edge Gate Valves Has Long life, in Working Cycle. This can be also Remotely Operated, Proportional & Proportionate Type Operated with Pneumatic Air Cylinder. Also Known as Pneumatic Positioner Operated.

Various Types of Knife Edge Gate Valves are Pneumatic Sliding Gate Type, Metal to Metal Seated Design, High Sealing Soft Seated type Replaceable Seat Ring design, NI-HARD seated Knife Edge Gate Valves with Pneumatic cylinder Operated.

Full Port Uni-Directional and Bi-Directional Flow Type, Epdm Resilient Seated Type, Heavy Duty Fabricated type, Extended Stem type, And Hardened Beveled Gate Type all operated with Pneumatic Air Cylinder Knife edge Gate Valves

Proline High Performance Cylinder Operation are Double Acting type On-Off Cylinder, Single Acting On-Off Cylinder and Electro Pneumatic Positioner Operated with Air Cylinder and Accessories. This Have Ends like Single Wafer type, full lugged type, half lugs type Ends and Double flanged Ends type.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Cylinder Operated Knife Edge Gate Valve

• Pneumatic Cylinder Operated Knife Edge Gate Valves Include Various Pneumatic Accessories. Like 3/2 way, 5/2 Way Solenoid Valve, Air Filter Regulator, Limit Switches Proximity Switch, Roller Limit Switch with Pneumatic Tubing & Fittings, Speed Control Valve, I/P Converter, Pneumatic Positioners And Manual Override with Gear Operated
• High Accuracy Degree Machined at Bottom Ultra Thicker Gate and Lapped Integral to Prevent 100 % Leakage Bubble-Tight Shut-off Knife Edge Gate Valves in Sealing.
• Proline Knife Edge Gate Valves Are With High Sealing Performance In High Cycle Applications With Positive Shut Off In Both Directions,
• Various Features Included High Graded Heavy Duty One-Piece body casting KGV, Renewable Seat Type, Optional Seat Ring, Replaceable Seat Design, rugged stainless steel Thicker gate, hardened trim And Full Port Design Inside The Diameter, for greater flow capacity and minimal pressure drop Available in Proline Make Knife edge Gate Valves.

Material Option Of Our Cylinder Operated Knife Edge Gate Valve

• Size: 50 Mm To 900 Mm – 2″-36”
• Body Material: Cast Iron, Ductile Iron, Ic-Wcb,Ss304,Ss316,Ss316L
• Gate Material: M.S,Ss 304,Ss316,Ss316L,Nitriding,Stelliting
• Seat Material: Ptfe Teflon, Epdm,Viton, Silicone, Metal To Metal, Soft Seating
• End Connection: Full Lugs, Wafer Type, Flangeless, Double Flanged Type
• Drilling: As Per Ansi B 16.5 / Bs / Din / Jis / Is Standard, Rest On Request
• Design & Insp: Ms Sp 81 Design Standard And Api 598
• Operation Type: Hand Wheel Type, Gear Operated, Pneumatic Cylinder, Electrical Actuator

Y Type Angle Control Valve | Suppliers & Manufacturers India

PROLINE INDUSTRIAL VALVES

Manufacturer & Exporter of All type of Angle Control Valves, Y type Control Valves. This 2/2 Way Pneumatic on-off ‘Y’ type Control Valve areNormally Closed Type and Normally Open Type as per Application To Application Requirement. These Pneumatic Angle Seated Valves are Pneumatic Piston Operated or Pneumatic Cylinder Operated Y Type Control Valves.

2 /2 Way Pneumatic Single Acting & Double Acting Actuator Operated Angle Type On / Off Control Valve (N/O & N/C) are designed for Quick Opening and Quick Closing in Line. This Y Type Pneumatic Angle Control Valves Gives High Flow in Line. Y type Cylinder Actuated Valves are Non-Water Hammering. Y Type Pneumatic Flow Control Valves are Specially Designed for On-Off Application. Y type Steam Control Valves has Self Adjustable Gland Packing with Self Cleaning Spring Loaded Teflon.

Proline Make Y type Angle Control Valves Specially has Silicon Material Seal for Longer Operational Life. Y type Valve Bonnet Can be Assembled in Horizontal, Vertical or Angled Position as Per Requirement.
Y type Pneumatic Flow Control Valves are Compact in Design.

This Water Solenoid Valves 2 by 2 Way Pneumatic Control Valves are Light in Weight Compared to another Control Valves and Has Low Installation Cost. Y Type Pneumatic Angle Control Valve are Available in Screwed Ends, Flange End & Tri Clover Ends. Y Type Control Valves are Also Available in 2/2 Way Pneumatic Single Acting & Double Acting Type Globe Body On – Off Valve. Y type Piston Operated Valves are widely used to control of Air, Gas, Steam, Oil, and Water Line.

We manufacture, supply and export in anywhere India & UAE with fastest delivery option.

Features Of Our Y Type Angle Control Valve

• Y type Angle Control Valve has High flow capacity.
• Y types Pneumatic Flow Control Valve are Compact in Design & Light in Weight.
• Y type Angle Seated Valves has Small Actuator with lower Air Consumption
• Y type Control Valves are Easy in Installation and Maintenance.
• Y type Pneumatic Flow Control Valves are Low in Cost.

Material Option Of Our Y Type Angle Control Valve

• Type: Normally Close / Normally Open
• Size: 15 Mm To 150 Mm – 1/2 “- 6”
• Body & Bonnet: Ic – Astm A 216 Gr Wcb /Cf8/Cf8M
• Trim Materials: Stainless Steel A 351 Gr. Cf8/ Cf8M
• Seat / Seal: Silicon Teflon (Ptfe) /Viton/ Epdm, Buna Nitrile
• Gland Packing: Self Adjusting, Spring Loaded Teflon
• Pressure Rating: 0 – 16 Bar / 0 – 42 Bar
• Temperature: -10° C To 180° C
• Ends: Screwed End, Flange Ends, Tri Clover Ends
• Leakage Class: Bubble Tight
• Media: Air,Water,Oil,Gas & Steam
• Actuator Type: Piston Type / Cylinder Type – S.S./ Aluminium
• Actuator Pressure: 3.5 To 7 Bar
• Actuator Action: Direct Acting Air Fails Open / Reverse Acting Air Fails Closed & Double Acting Air Fails Stay Put
